Leaf Spring Hangers

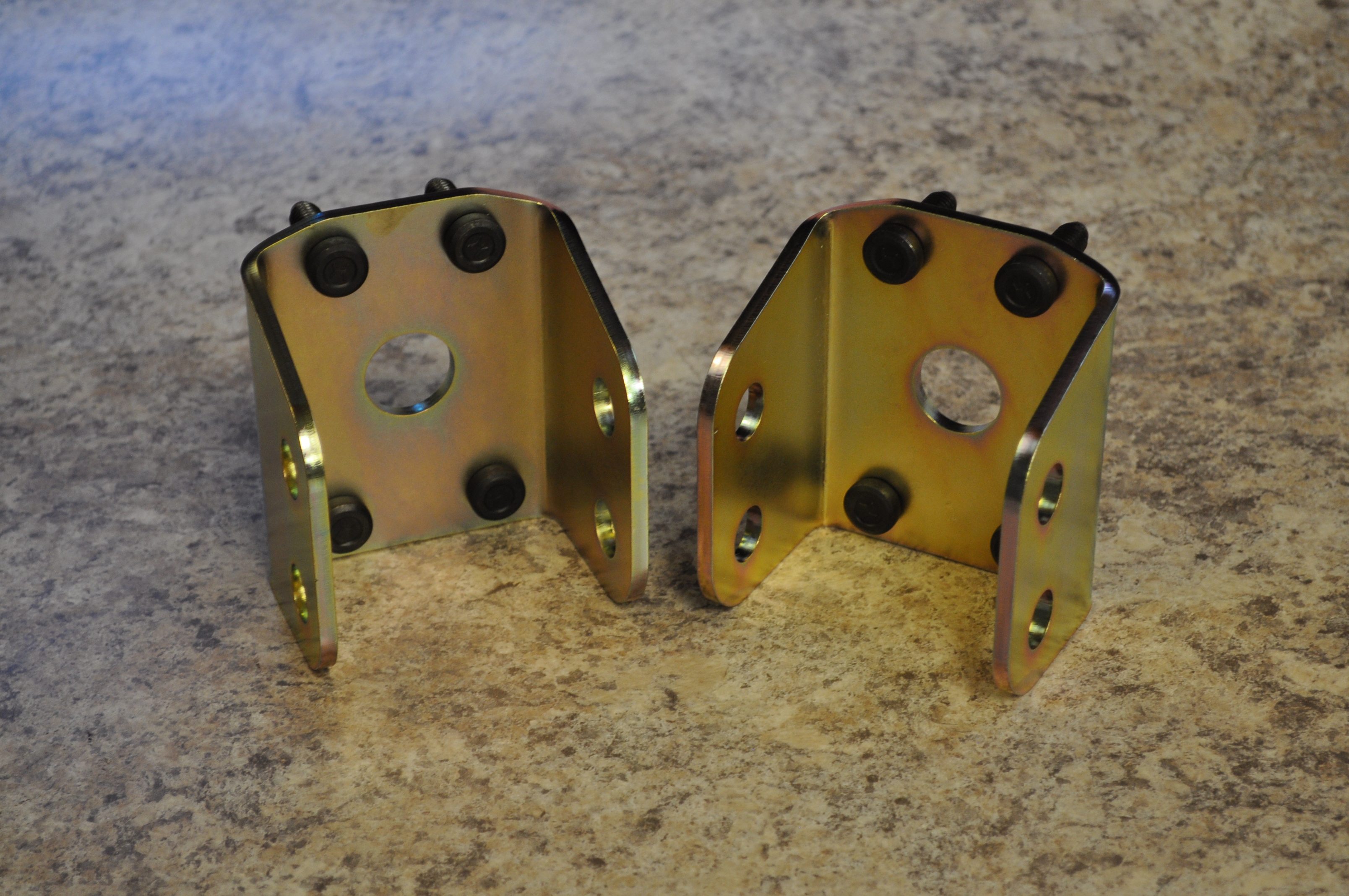

These hangers are a heavy duty reproduction of the factory front hangers. These have the large 5/8 diameter eye bolt hole so Super Stock springs will bolt right in. In addition to the larger bolt hole, these hangers have a second location for the eye bolt. The lower eye bolt hole is in the stock location, the upper one is 1.5 inches higher (lowers the car by one inch). These hangers are zinc plated for corrosion resistance and come with the hanger studs installed. Install using the factory style washer nuts torqued to 30 ft-lbs.
Leaf Spring Hangers

Reinforcement Plates

Hanger Leaf Spring Bolts (w/nuts)

Hanger Nuts
